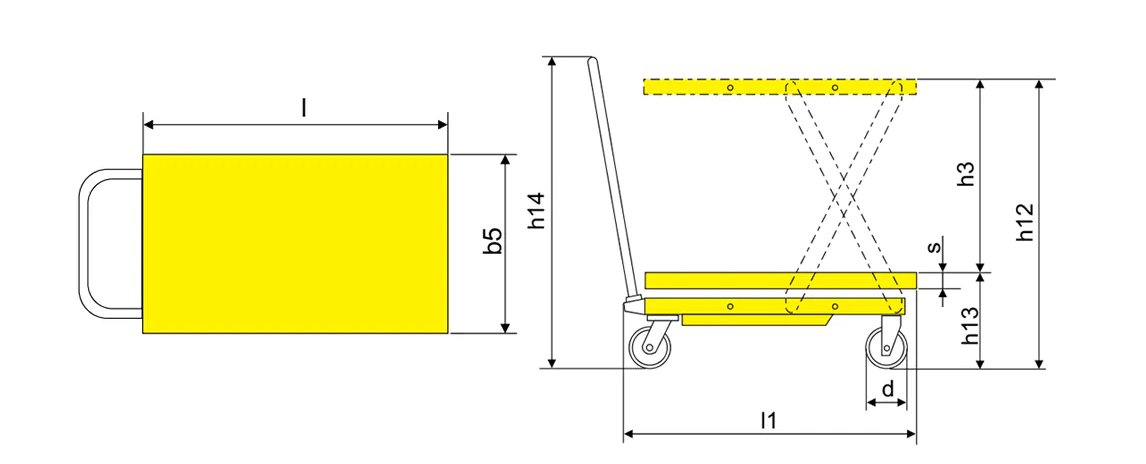

| Model | SP150 | SP300 | SP500 | SP500A* | SP500B* | SP500C* | |
| Capacity | kg | 150 | 300 | 500 | 500 | 500 | 500 |
| Max. lift height | h12(mm) | 740 | 900 | 900 | 900 | 1100 | 900 |
| Min.height of table | h13(mm) | 225 | 280 | 280 | 305 | 310 | 305 |
| Lifting height | h3(mm) | 515 | 620 | 620 | 595 | 790 | 595 |
| Table size | lxb5xs(mm) | 700x450x35 | 815x500x50 | 815x500x50 | 1050x700x52 | 1200x800x52 | 1050x850x52 |
| Total height | h14(mm) | 935 | 996 | 996 | 970 | 970 | 970 |
| Overall length | l1(mm) | 770 | 937 | 937 | 1120 | 1270 | 1120 |
| Foot pedal cycles to max height | ≤25 | ≤32/≤45 | ≤32/≤45 | ≤55 | ≤55 | ≤55 | |
| Wheel diameter | d (mm) | 100 | 127 | 127 | 127 | 127 | 127 |
| Qty. / 20' Container | PCS | 192 | 120 | 120 | 90 | 60 | 90 |
| Service weight | kg | 42 | 74.5/79.5 | 74.5/79.5 | 108 | 120 | 108 |
| Carton size | mm | 820x480x265 | 960x530x420 | 960x530x420 | 1150x730x330 | 1300x830x340 | 1150x880x330 |
*Model SP500A,SP500B and SP500C are different on table size and lifting height.
1KG=2.205LB 1INCH=25.40MM
