Model:

CBD15

Li-ion Powered Pallet Truck

Split rocker arm makes the equable stress in order to keep the long-time using.

Category:

ELECTRIC FORKLIFT

Keywords:

Li-ion Powered Pallet Truck

E-mail:

sales@jhforklift.com

Contact

Message

Product

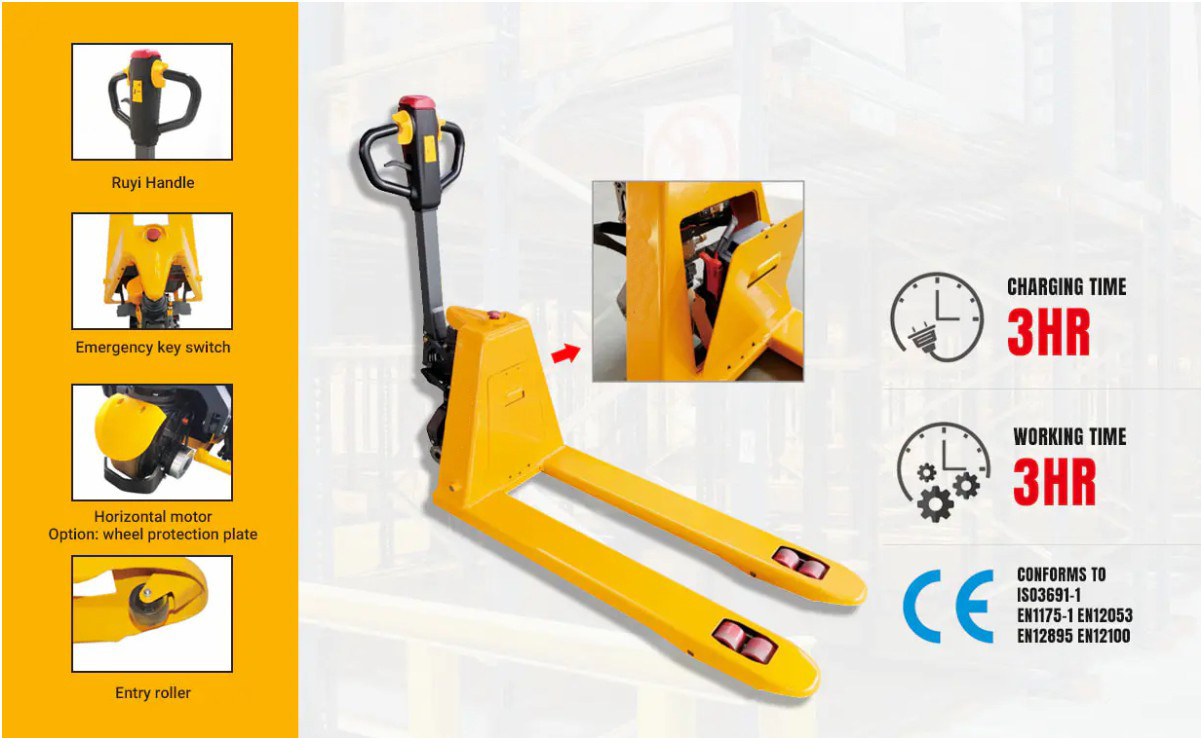

ADVANTAGE:
Standard:
option:
●Lithium battery capacity: 24V/20AH.
●Big battery capacity: 24V/30AH(LITHIUM)
●Ruyi handle with bully switch.
●Entry roller
●High quality emergency switch ( as key switch).
●Double fork roller
●Split rocker arm makes the equable stress in order to keep the
long-time using.
●Driving wheel with horizontal mounted motor, convenience to
maintain.
●External battery charger connector, can be charged separately
even the battery were used out
●Single fork roller.

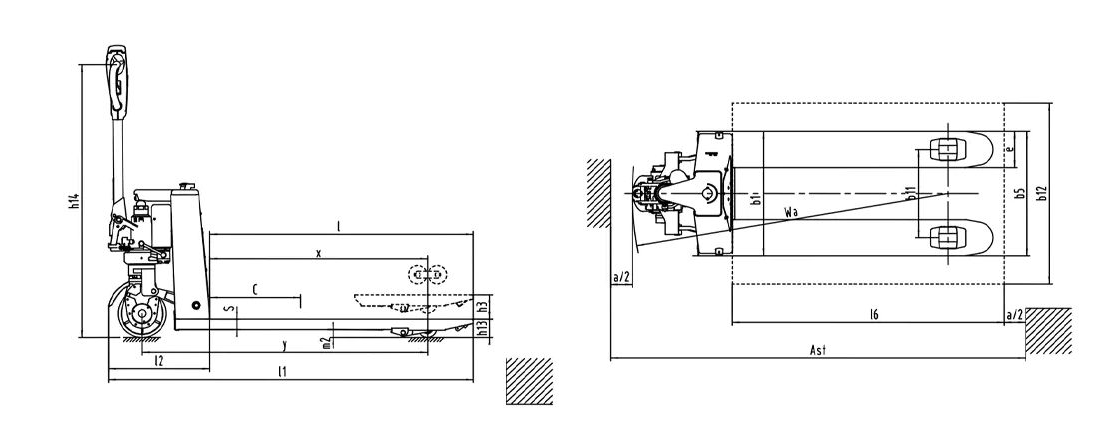

DIMENSION DRAWING:

Model		CBD15
Load capacity	Q(kg)	1500
Load centre distance	c(mm)	600
Fork height, lowered	h₁₃(mm)	80
Tyre size, front	mm	ɸ210X70
Tyre size, rear	mm	ɸ80X93/ ɸ80X70
Max. lift height	h₃(mm)	110
Height of tiller in drive position min./max.	h₁₄(mm)	635/1200
Overall length	l₁(mm)	1580/1650
Length to face of forks	l₂(mm)	430
Overall width	b₁(mm)	550/685
Fork dimensions	s/e/l(mm)	53/160/1150(1220)
Width overall forks	b₅(mm)	550/685
Aisle width for pallets 1000x1200 crossways	A_st(mm)	2180/2250
Aisle width for pallets 800x1200 lengthways	A_st(mm)	2050/2085
Turning radius	W_a(mm)	1380/1450
Travel speed, laden/unladen	Km/h	4.3/4.5
Battery voltage, nominal capacity K₅	V/Ah	24/20
Battery weight	Kg	5.5
Service weight(with battery)	Kg	114
